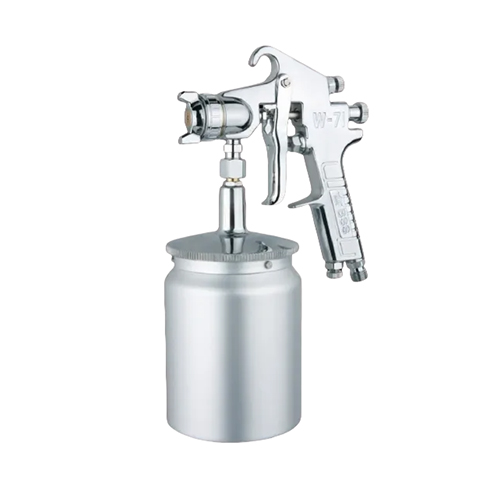

W-71S Spray Guns For Furniture Painting

The W71 series spray guns are widely popular manual painting tools in the market,the W71 series spray guns, with their advanced technology, wide applicability, ease of operation, and durability, have become the preferred choice for many professional coating fields.

Send Inquiry

Product Description

Spray Guns For Furniture Painting

1.Introduction of W-71S Spray Guns For Furniture Painting

The W71 paint spray gun is a high atomization spray gun tool for spraying automotive paints, motor oils, coatings, latex paints and more. It is suitable for a variety of renovation environments, including installation work and painting work。



2.Parameter of W-71S Spray Guns

BSS W-71S

Spray width: 100-265mm

Inlet pipe diameter 5mm

Inlet pressure 4-8kg

Air consumption 9cfm

Container capacity 600ml

Material: aluminum alloy

Air connection G1/4(PF1/4).

Air compressor 1.5KW, weight 450G.

Model Specification

Caliber

mm

Air pressure

MPa

Air usage

L/min

Paint discharge

ml/min

Apraying swath

mm

Air power

KW

Weight

G

W-71-1S attraction injector 1.0 0.29(3.0) 75 95 100 0.4 450
W-71-21S 1.3 195 140 155 1.5 450
W-71-31S 1.5 230 170 170 1.5 450
W-71-4S 1.8 230 195 195 1.5 450



3.Features:

1. Atomization Technology: The W71 series utilizes advanced atomization technology to achieve uniform and fine spray results, suitable for a variety of paint applications.

2. Multiple Feed Methods: Available in pressure-fed, gravity-fed, and suction-fed options, users can choose the most appropriate type of spray gun based on their specific work requirements.

3. Nozzle Sizes: A variety of nozzle sizes are available, such as 1.0mm, 1.3mm, 1.5mm, 1.8mm, etc., to accommodate different paint viscosities and spraying needs.

4. Spray Air Pressure: The spray air pressure is stable, ensuring consistent and repeatable spray results.

5. Air Consumption: Air consumption is moderate, ensuring both the desired spray effect and energy savings.

6. Material Flow Rate: The material flow rate is adjustable, catering to various spraying speeds and thickness requirements.



4.Selling Points

The W71 spray gun features a variety of material supply methods, including pressure feed, gravity feed and suction up, to suit different spraying needs and material types. Additionally, it features adjustable spray air pressure and material output to ensure precise and uniform spraying results.The spray distance and spray width of the W71 spray gun also provide a high degree of flexibility to adapt to different working environments and spraying objects.



1. High Efficiency: The advanced atomization technology of the W71 series ensures high spraying efficiency and time savings.

2. Wide Applicability: Suitable for various coating fields, including woodwork furniture, vehicles, metals, plastics, etc.

3. Ease of Operation:Designed with user-friendly features, making operation and maintenance simple.

4. Durability: Constructed with high-quality materials, ensuring long-lasting durability.



5.Safety Precautions

1. Safety:

    - Wear appropriate personal protective equipment, such as a respirator, safety glasses, and gloves, during operation.

    - Ensure the work area is well-ventilated to avoid inhaling paint fumes.

    - Follow all applicable safety regulations and operating procedures.



2. Operation:

    - Do not use the spray gun for non-paint liquid spraying.

    - Avoid using the spray gun in high-temperature or flammable environments.

    - Do not spray on people or animals.



3. Maintenance:

    - Do not use hard objects to scrape the nozzle or air cap to prevent damage.

    - Do not use corrosive cleaners to clean the spray gun.

    - Do not expose the spray gun to direct sunlight or high temperatures for extended periods.



4. Storage:

    - Store the spray gun in a dry, clean environment when not in use.

- Keep the spray gun out of reach of children.



Customer Concerns and FAQs

Q1: How do I choose the correct nozzle size for the W71 spray gun?

A1: Select the nozzle size based on the type of paint you are using and the desired spray finish. Generally, a higher viscosity paint requires a larger nozzle size to ensure smooth paint flow.



Q2: What is the maintenance cycle for the W71 spray gun?

A2: It is recommended to clean and maintain the spray gun after each use. Regular maintenance, such as replacing worn parts and checking air path seals, can extend the life of the spray gun.



Q3: What should I do if the W71 spray gun is producing uneven paint spray?

A3: First, check if the nozzle is clogged or damaged, ensure there is no air entering the paint supply system, and adjust the air pressure to the recommended level. If the problem persists, contact the manufacturer or a professional technician for inspection.



Q4: What types of paint can be used with the W71 spray gun?

A4: The W71 spray gun is suitable for a variety of paints, including water-based and solvent-based paints. Always ensure that the paint type is compatible with the spray gun.



Q5: How do I properly connect the W71 spray gun to the air compressor?

A5: Ensure the air compressor provides clean and dry air, and connect using the appropriate air hose and quick connectors. Check all connections for leaks.



Q6: What spray patterns does the W71 spray gun offer?

A6: The W71 spray gun typically offers fan and round spray patterns. Users can choose the appropriate pattern based on their spraying needs.



Q7: Who should I contact if my W71 spray gun has a malfunction?

A7: If you encounter any technical issues or malfunctions, please contact the manufacturer's customer service department or an authorized service center. Provide the product model and a description of the problem for professional assistance.



Q8: What is the warranty period for the W71 spray gun?

A8: The W71 spray gun typically comes with a [specific warranty period] warranty from the manufacturer. Please refer to the product manual or contact the manufacturer for detailed information.



Q9: How should I store the W71 spray gun when not in use?

A9: Clean the spray gun thoroughly and store it in a dry, dust-free environment. Avoid prolonged exposure to direct sunlight or high temperatures.



Q10: What should I be aware of when cleaning and maintaining the W71 spray gun?

A10: Use recommended solvents and cleaners for cleaning, avoiding corrosive substances. Regularly replace worn parts such as nozzles and air caps to maintain optimal performance.
