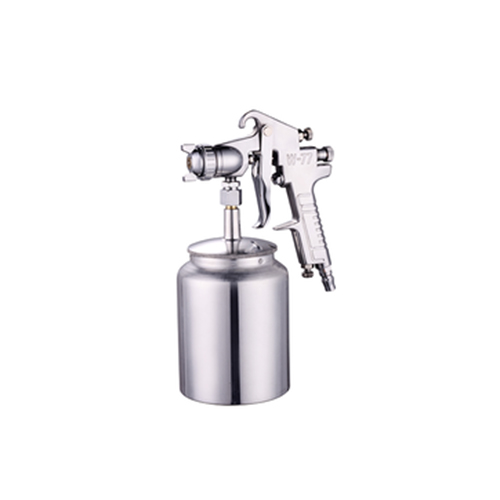

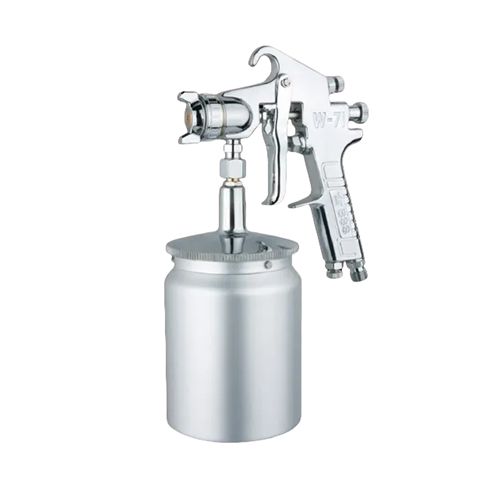

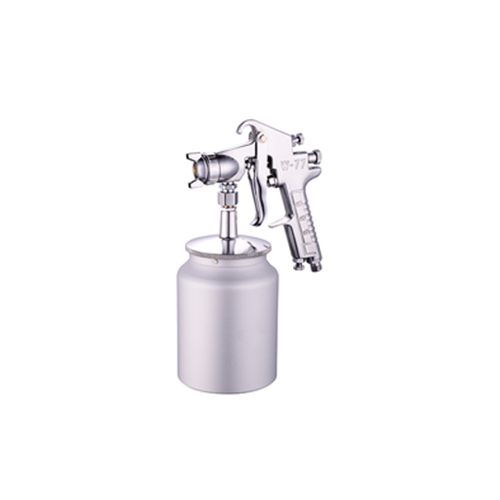

W-77S Siphon Color Spray Guns

The W77 series paint spray gun is a popular paint spraying tool on the market, favored by professionals and hobbyists alike for its excellent performance and user-friendly design.

Send Inquiry

Product Description

Siphon Color Spray Guns

1.Introduction of W-77S Siphon color Spray Guns

W77 paint spray gun is a widely used painting tool for automotive painting, woodworking painting, metal painting and other fields. It is well known for its stable performance and reliable spraying results, providing an efficient and precise solution for painting work.



2.Parameter of W-77S Siphon color Spray Guns

BSS W-77S

Air consumption 9cfm

Container capacity 1000ml

Material: aluminum alloy

Air connection G1/4(PF1/4).

Air compressor 1.5KW, weight 450G.

Model Coating supply system

Paint nozzle diameter

φmm

Spraying distance

mm

Spray air pressure

MPa

Air usage

ml/min

Air ejection

ml/min

Open spray

mm

All compressors

KW

weight

g

Standard coating

container

W-77-1S suction 1.0 250-300 0.34 180 255 210 0.75-1.5 550 PC- 1(1000m)
W-77-2S 1.5 250 345 255 1.5
W-77-3S 2.0 325 435 435 1.5-2.2



3.Features:

1. Efficient spraying technology

W77 spray gun adopts advanced spraying technology, which can realize high atomization effect, even and fine spraying. This technology not only improves the quality of the coating, but also reduces the waste of paint, which improves the working efficiency and economic benefits.



2. Flexible nozzle adjustment

The nozzle design of the W77 paint spray gun allows the user to adjust the nozzle according to different paint types and coating requirements. Users can adjust the size and shape of the nozzle according to the viscosity of the paint, the painted area and the required coating thickness, ensuring precise and consistent spraying results.



3. Adjustable Painting Pressure

The gun has an adjustable application pressure function that allows the user to adjust the pressure according to the characteristics of the paint and the fineness of the coating. This adjustment allows the W77 to adapt to a variety of different painting environments and materials, providing great flexibility and control.



4. Ergonomic design

The W77 spray gun is designed with ergonomics in mind. The handle conforms to the natural grip of the hand, reducing hand fatigue during prolonged operation. This design not only improves the comfort of operation, but also enhances the accuracy and efficiency of spraying operations.



5. Easy to clean and maintain

The structural design of the W77 spray gun makes cleaning and maintenance quick and easy. The nozzle and internal components are easy to disassemble and assemble, which not only reduces the time required for maintenance, but also reduces maintenance costs and ensures the long-term stable operation of the spray gun.



6. Safety and environmental protection

In terms of safety, W77 paint spray gun is designed with multiple safety protection measures to ensure the safety of users in the process of use. At the same time, the environmentally friendly design of the spray gun reduces the volatilization of paint and the spreading of spray, which helps to protect the working environment and the health of the operators.



4.Selling Points

The W77 paint spray gun is a popular tool in the painting field, which provides users with efficient and precise painting solutions with its unique design and excellent performance features. The following is a detailed description of the W77 paint spray gun's selling points:



1.Efficient Spraying: W77 paint spray gun provides even and fine coating effect, which significantly improves the working efficiency and coating quality, suitable for all kinds of painting needs.

2.Flexible Adjustment: The nozzle is adjustable and can be easily adjusted by the user according to the viscosity of the paint and the area to be coated, which ensures that the best results can be achieved every time you spray.

3.User-friendly design: Ergonomic grip design for comfortable operation, while the cleaning and maintenance process of the spray gun is simple and quick, reducing maintenance cost and time.

4.Safety and environmental protection: focus on operation safety, reduce the impact on the environment, in line with modern environmental protection concept.

5.Wide applicability: suitable for automobile painting, furniture painting, metal surface treatment and other painting occasions, it is the ideal choice for professional painters and amateurs.



5.Safety Precautions

1. Personal Protective Equipment (PPE): When using the W77 Paint Spray Gun, wear appropriate personal protective equipment (PPE), including dust masks, protective eyewear, chemical splash-proof protective clothing and gloves. This equipment is effective in preventing paint and solvent damage to the skin, eyes and respiratory tract.



2. Good Ventilation: Ensure that the work area is well ventilated to reduce the risk of inhaling paint and solvent vapors. If possible, use an exhaust system or conduct spraying operations outdoors.



3. Correct Operation: Carefully read and understand all instructions and safety guidelines in the operator's manual before using the W77 paint spray gun. Ensure that the nozzle is correctly installed and adjusted to avoid excessive pressure and incorrect spraying techniques, which may result in splattering or uneven spraying of paint.



4. Equipment Inspection: Periodically inspect paint spray gun nozzles, hoses, and connecting parts to make sure they are not worn or damaged. Damaged parts may cause paint to leak or spray unevenly, increasing safety risks.



5. Cleaning And Maintenance: Clean the paint spray gun promptly after use to prevent paint from drying out and clogging the nozzle. Regularly maintain the paint spray gun to ensure its proper operation and avoid safety accidents caused by equipment failure.



6. Chemical Management: Store and dispose of paints and solvents properly and avoid contact with children and pets. Know and follow the safety information and disposal guidelines on the chemical safety data sheets (SDS) for all paints and solvents.



7. Emergency Measures: Familiarize yourself with what to do in an emergency, including how to deal with skin contact, eye contact and inhalation accidents. Ensure that work areas are equipped with appropriate first aid equipment, such as eyewash stations and first aid kits.



Customer Concerns and FAQs

1. How do I properly clean my W77 paint spray gun?

Answer: Immediately after use, clean the paint spray gun with a suitable solvent to prevent the paint from drying out. Disassemble the nozzle and spray tip and thoroughly clean the interior using a cleaning brush and cleaning solution. Make sure all parts are cleaned and then reassemble.



2. What if the nozzle of the W77 paint spray gun is clogged?

Answer: If the nozzle is clogged, first try using a nozzle cleaner or special nozzle cleaning tool. If the clogging is severe, it may be necessary to disassemble the nozzle and unclog it using a fine needle or cleaning line.



3. How do I adjust the spray pattern of the W77 paint spray gun?

Answer: The W77 paint spray gun usually has an adjustable spray pattern that allows you to change the width and shape of the spray by adjusting the nozzle and air cap. Please refer to the guide in the user manual for adjustment.



4. What should I do if my W77 paint spray gun is not spraying evenly during use?

Answer: Check that the nozzle is properly installed and make sure the nozzle and air cap are not damaged or worn. If the spray is still uneven, you may need to adjust the spray pattern or check the air pressure setting of the paint spray gun.



5. What should be the air pressure setting on the W77 paint spray gun?

Answer: The air pressure setting depends on the type and viscosity of the paint, as well as the spray finish you wish to achieve. Typically, the owner's manual will provide a recommended air pressure range. Please adjust according to your paint's instruction manual and the paint spray gun's guide.



6. What is the maintenance interval for the W77 paint spray gun?

Answer: Cleaning and inspection are recommended after each use. Periodic maintenance intervals depend on the frequency of use, but a thorough maintenance and inspection is usually recommended after a certain number of uses.



7. What is the warranty policy for the W77 paint spray gun?

Answer: Most W77 paint spray guns come with a limited warranty that usually covers manufacturing defects. The length and specific terms of the warranty may vary depending on the brand and where it was purchased. Please refer to the warranty card provided at the time of purchase or contact the manufacturer for details.



8. How do I store my W77 paint spray gun to extend its life?

Answer: When not in use, clean and store the paint spray gun in a dry, well-ventilated area. Avoid exposing the gun to extreme temperature or humidity conditions to prevent damage to parts.
